Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

Shenzhen Rona Intelligent Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

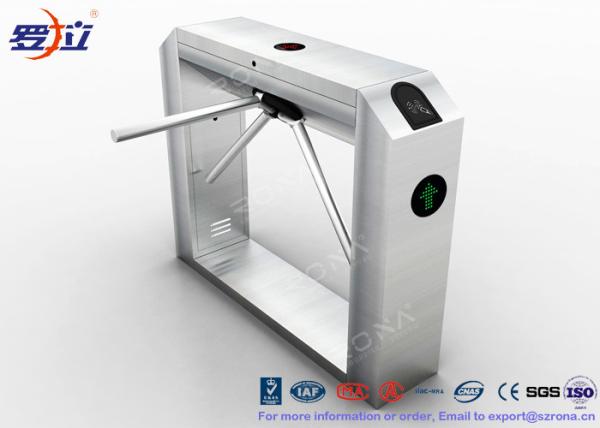

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

  • 1
  • 2
  • 3

Brand Name : RONA

Model Number : RNCF 838

Certification : CE / ISO9001

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T,

Supply Ability : 2000 units Per Month

Delivery Time : 7-15 working days

Packaging Details : carton and wooden packing

Material : 304# Stainless Steel

Dimension(L*W*H) : 1200mm*280mm*990mm

Thickness of Material : 1.5mm

Work movement : Germany technology electromagnetic valve

Passage Width : 550mm

MTBF : 5 million

Color : Silver

Operation temperature : -10°~70°

Contact Now

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate


PRODUCT CLASSIFICATIONS:

1 Auto replacement function, reposition after person pass by

2 Anti tail function auto-lock once turn 60° .

3 Arms auto drop when power off , insure unblocked when accident

4 Standard electronic interface, remote control through internet which is also could connect varieties of card readers and receive relay signal to work

5 Diverse control mode optional, changeable due to varying, convenient for your management

6 Auto alert error function, comfort for user maintain and operation

7 Manual button or remote control , bidirectional passage

8 Open signal with memory or with out set function

9 Red and green light to show pass or stop, leisure to exit and entrance

Technical parameters of tripod turnstile
Power voltage AC220±10%,50Hz Open angle 60°
Drive voltage DC24V; AC12V+AC18V Pass speed ≤ 30 persons/minutes
Running life Continuous Opening and Closing operation More than 5 million times
Operation temperature -30℃~+70℃ Structure Frame or 304 Stainless steel cover
Relative humidity ≤95%,None-condensation Open direction Unidirectional and bidirectional (optional)
Input signal 12v DC level or DC12v pulse>100ms Environment Outdoor and indoor
Working Current >2000mA

Protection Grade

IP54
Length of the bar 510mm

Width of passage

550mm

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

3 models of tripod turnstile

1. Automatic vertical tripod turnstile

  • Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
  • Optional operating mode: one side or both sides
  • Smooth operation, low noise.
  • Have received emergency function,falling down in outage situation, rising up when electricity.
  • Control panel with counting function, LED digital display function (optional)
  • Control panel with memory function
  • Standard input and output interface, is the best choice for system integrators

2. Semi-automatic vertical tripod turnstile

  • Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
  • Optional operating mode: one side or both sides
  • Arms unlock, rapid and reliable
  • Have received emergency function,falling down in outage situation, rising up when electricity.
  • Control panel with counting function, LED digital display function (optional)
  • Control panel with memory function
  • Standard input and output interface, is the best choice for system integrators

3, Mechanical vertical tripod turnstile

  • Unique positioning and reset system: automatic reset, the arms can always stay in a horizontal position.Mechanical transmission products. manual control operation, simple & high reliability
  • No maintaining, suitable for one-way current limiting situation
